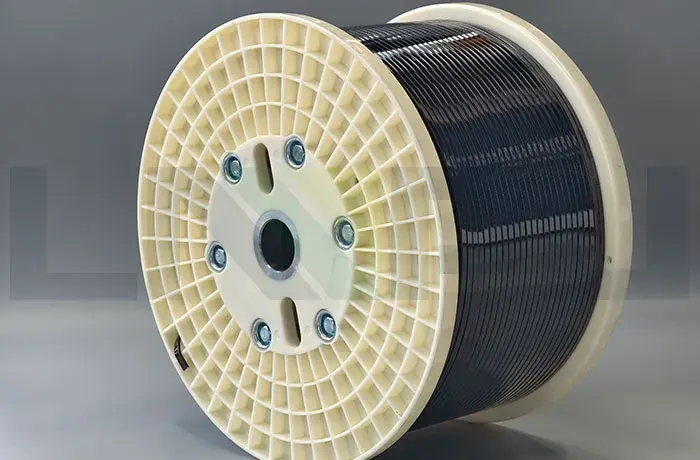

Enameled Aluminum Wire

Introduction of enamelled aluminum wire:
Enameled aluminum wire is made of electrical aluminum rod, which are draw by the specification mould,it is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment. Enamelled aluminum wire has the characteristics of light weight, easy winding and low cost compared to enameled copper wire, and is widely used in the winding of electrical equipment such as transformers, reactors, motors, and UPS power supplies,etc.
Zhengzhou LP Industry enameled aluminum wire is based on the national standard GB, the US NEMA standard and the EU IEC60317 standard or the technical requirements of customers to formulate production standards. The main performance control indicators are conductor size, conductor fillet size, insulation thickness, overall size, elongation, Spring back, flexibility and adhesion, room temperature (high temperature) breakdown voltage, thermal shock and other items.

Enamelled round aluminum wire guage(awg/swg 4-28 aluminum wire is hot sale magnet wire )

AWG	Bare Diameter(mm)	AWG	Bare Diameter(mm)	SWG	Bare Diameter(mm)	SWG	Bare Diameter(mm)
1	7.35	26	0.40	1	7.62	26	0.46
2	6.55	27	0.36	2	7.01	27	0.42
3	5.82	28	0.32	3	6.40	28	0.38
4	5.18	29	0.29	4	5.89	29	0.35
5	4.62	30	0.25	5	5.38	30	0.31
6	4.12	31	0.23	6	4.88	31	0.29
7	3.67	32	0.20	7	4.47	32	0.27
8	3.26	33	0.18	8	4.06	33	0.25
9	2.91	34	0.16	9	3.66	34	0.23
10	2.59	35	0.14	10	3.25	35	0.21
11	2.30	36	0.13	11	2.95	36	0.19
12	2.05	37	0.11	12	2.64	37	0.17
13	1.83	38	0.10	13	2.34	38	0.15
14	1.63	39	0.089	14	2.03	39	0.13
15	1.45	40	0.079	15	1.83	40	0.12
16	1.29	41	0.071	16	1.63	41	0.11
17	1.15	42	0.064	17	1.42	42	0.10
18	1.02	43	0.056	18	1.22	43	0.091
19	0.91	44	0.051	19	1.02	44	0.081
20	0.81	45	0.045	20	0.91	45	0.071
21	0.72	46	0.040	21	0.81	46	0.061
22	0.64	47	0.035	22	0.71	47	0.051
23	0.57	48	0.032	23	0.61	48	0.041
24	0.51	49	0.028	24	0.56	49	0.030
25	0.45	50	0.025	25	0.51	50	0.025

Enamelled Flat aluminum wire guage

Name	Enameled Rectangular Aluminum Wire
Conductor	Aluminum
Dimension	Thickness(a):0.8-8.0mm; Width(b):2.0-25mm
Special Dimension	2.5*25mm,4*25mm

Enamelled Square aluminum wire guage

Name	Enameled Square Aluminum Wire
Conductor	Aluminum
Dimension	Thickness(a)/Width(b):1.2-8mm
Special Dimension	send the requirement's size, custom the size of aluminum wire

Thermal Class and coating materials of Enamelled aluminum wire:120(Class E), 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)

Thermal Class	Insulation Type
105℃	Formvar
	Polyurethane Bondable Formvar Bondable Polyurethane Nylon Bondable
130℃	Polyurethane Nylon
155℃	Polyurethane 155
	Polyurethane Nylon 155
	Polyurethane 155 Bondable Polyurethane Nylon 155 Bondable
180℃	Polyurethane 180
	Polyester-imide
	Polyurethane Nylon 180
	Polyurethane Bondable Polyester-amide-imide Bondable Solderable Polyester Bondable
	Polyurethane Nylon
	Solderable Polyester
	Solderable Polyester Nylon
	Polyurethane 180 Bondable Polyurethane Nylon 180 Bondable
200℃	Polyester 200
	Polyester A / I Topcoat
	Polyester A / I Polyamideimide
	Polytetrafluoloethylene (Teflon)
240℃	Polyimide – ML

Coating of Enamelled aluminum wire:single coating or grade 1, double coated or grade 2

Zhengzhou LP Industry enameled round aluminum wire’s characteristic:
LP Industry Enameled round aluminum wire has good heat resistance and high solvent resistance
LP Industry Enameled round aluminum wire has good corrosion resistance, good scuff resistance, excellent flexibility and adhesion
LP Industry Enameled round aluminum wire has good conductivity and smooth surface processed by advanced extrusion equipment.
LP Industry use insulation varnish : ELANTAS, ALAKTA  and Dupont
Intelligent on-line monitoring equipment
Auto-change spool/bobbin equipment
